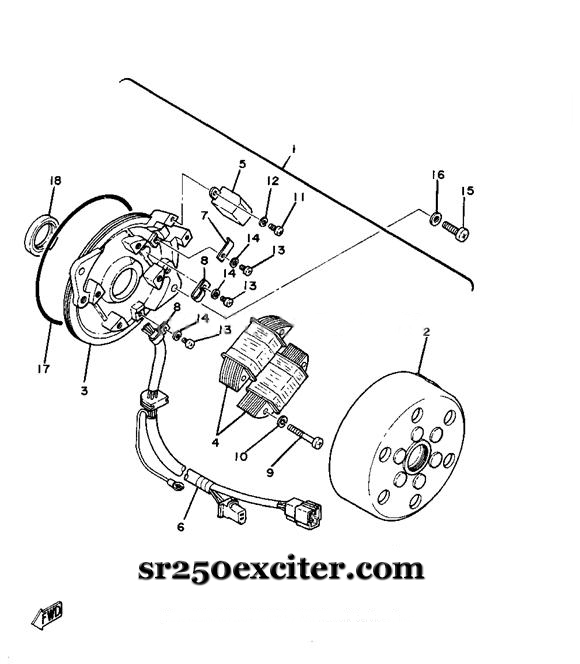

AC Generator
| AC Generator | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| AC Generator | ||||
| 1 | AC Magnet Generator Assembly | 3Y6-81400-10-00 | 1 | |
| 2 | Rotor Assembly | 3Y6-81450-10-00 | 1 | |
| 3 | Base Assembly | 3Y6-81409-10-00 | 2 | |
| 4 | Coil, Lighting | 3Y6-81413-10-00 | 2 | Supplies induced power to electrical system |
| 5 | Coil, Pulser | 3Y6-81416-10-00 | 1 | a.k.a. "pickup coil", senses engine speed, supplies timing signal to CDI |
| 6 | Lead Wire Assembly | 3Y6-81415-10-00 | 1 | |
| 7 | Lead Clamp 1 | 3Y6-81443-10-00 | 1 | |
| 8 | Lead Clamp 2 | 3Y6-81444-10-00 | 2 | |
| 9 | Screw, Pan Head | 98501-05035-00 | 4 | |
| 10 | Washer, Spring | 92990-05100-00 | 4 | |
| 11 | Screw, Pan Head | 98580-04010-00 | 2 | |
| 12 | Washer, Spring | 92901-04100-00 | 2 | |
| 13 | Lead Clamp 1 | 3Y6-81443-10-00 | 1 | |
| 14 | Washer, Spring | 92901-04100-00 | 3 | |
| 15 | Screw, Pan Head | 98580-06020-00 | 2 | |
| 16 | Washer | 92901-06600-00 | 2 | |
| 17 | O-Ring | 93211-19413-00 | 1 | |
| 18 | Oil Seal | 93102-25226-00 | 1 | |
