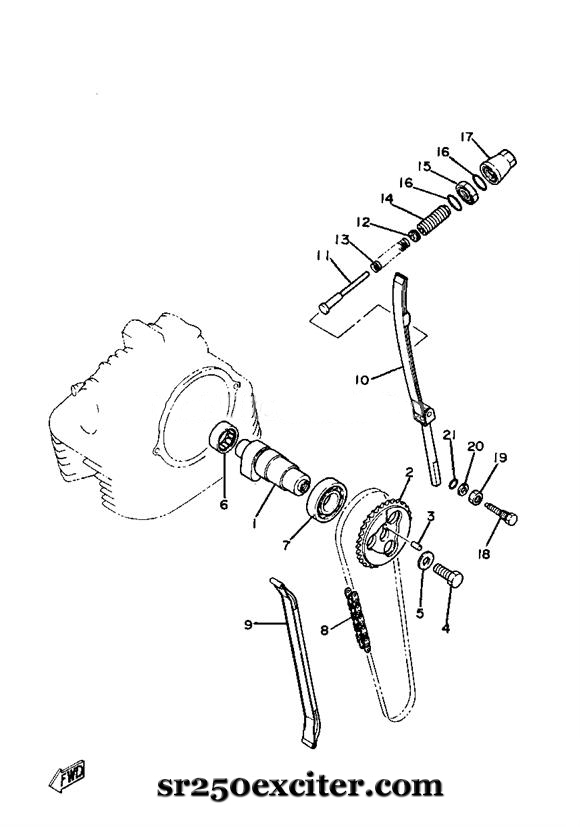

Camshaft and Timing Chain
| Camshaft and Timing Chain |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Camshaft and Timing Chain |
| 1 |
Camshaft Assembly |
3Y1-12170-00-00 |
1 |
|
| 2 |
Sprocket, Cam Chain |
3Y1-12176-00-00 |
1 |
aka "Sprocket, Timing Chain" |
| 3 |
Pin, Dowel |
93604-10011-00 |
1 |
|
| 4 |
Bolt |
90101-10303-00 |
1 |
|
| 5 |
Washer, Plate |
90201-10591-00 |
1 |
|
| 6 |
Bearing, Cylindrical |
93315-32516-00 |
1 |
aka "Needle Bearing" |
| 7 |
Bearing |
93306-00501-00 |
1 |
|
| 8 |
Chain |
94500-02090-00 |
1 |
aka "Timing Chain" |
| 9 |
Guide, Stopper 1 |
3Y1-12231-01-00 |
1 |
Follower guide |
| 10 |
Guide, Stopper 2 |
3Y1-12241-00-00 |
1 |
Tensioner guide |
| 11 |
Rod, Chain Tensioner |
3Y1-12217-00-00 |
1 |
Should wiggle slightly when engine runs |
| 12 |
Damper |
3Y1-12232-00-00 |
1 |
|
| 13 |
Spring, Compression |
90501-10587-00 |
1 |
|
| 14 |
Screw |
90149-14146-00 |
1 |
|
| 15 |
Nut |
90179-14298-00 |
2 |
|
| 16 |
O-Ring |
93210-16325-00 |
1 |
|
| 17 |
Case, Chain Tensioner |
3Y1-12212-00-00 |
1 |
|
| 18 |
Bolt |
90109-06555-00 |
1 |
|
| 19 |
Nut |
95301-08700-00 |
1 |
|
| 20 |
Washer, Plate |
92901-06600-00 |
1 |
|
| 21 |
O-Ring |
93210-06001-00 |
1 |
|
