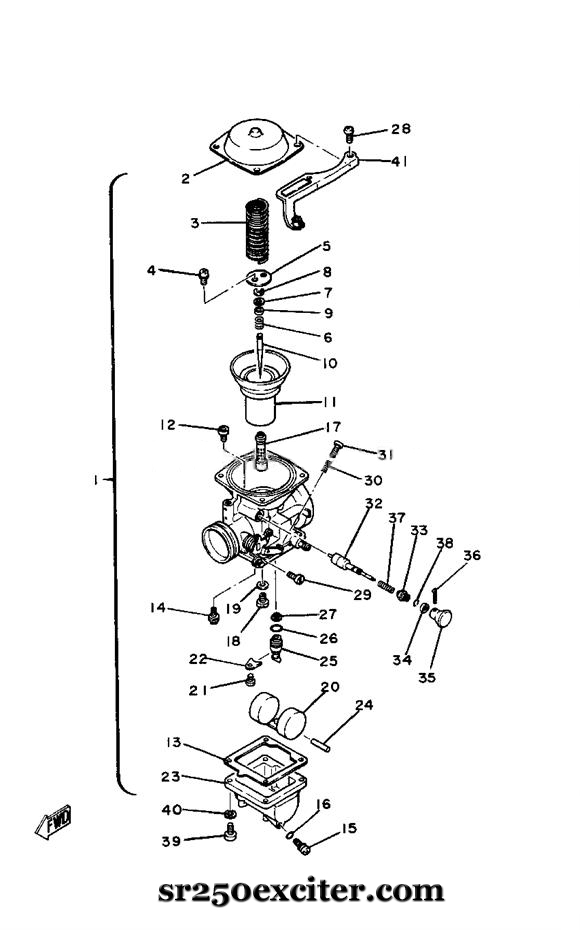

| 1 |
Carburetor Assembly |
3Y6-14901-00-00 |
1 |
|
| 2 |
Cover, Diaphragm |
3F7-14958-01-00 |
1 |
|
| 3 |
Spring, Diaphragm |
3Y6-14933-00-00 |
1 |
|
| 4 |
Screw, Pan Head with Washer |
97602-03108-00 |
2 |
|
| 5 |
Seat, Spring |
3F7-14936-00-00 |
1 |
|
| 6 |
Spring |
3F7-14589-00-00 |
1 |
|
| 7 |
Washer |
3F7-14952-00-00 |
1 |
|
| 8 |
Clip |
256-14919-00-00 |
1 |
|
| 9 |
Ring |
3F7-14918-00-00 |
1 |
|
| 10 |
Needle |
452-14116-25-00 |
1 |
|
11 |
Diaphragm Assembly |
3F7-14940-00-00 |
1 |
Aftermarket Diaphragm available; check eBay |
| 12 |
Jet, Main |
256-14944-28-00 |
1 |
Stock Size: #140 |
| 13 |
Gasket, Float Chamber |
3F7-14984-00-00 |
1 |
|
| 14 |
Jet, Pilot |
256-14142-47-A0 |
1 |
Stock Size: #47.5 |
| 15 |
Plug, Drain |
2L1-14191-00-00 |
1 |
|
16 |
O-Ring |
214-14147-00-00 |
1 |
|
| 17 |
Nozzle, Main |
2F3-14941-07-00 |
1 |
|
| 18 |
Jet, Main |
620-14231-24-A0 |
1 |
Stock Size: #120 |
| 19 |
Washer, Main Jet |
137-14153-00-00 |
1 |
|
| 20 |
Float |
3H5-14985-00-00 |
1 |
|
| 21 |
Screw, Panhead |
98501-04005-00 |
1 |
|
| 22 |
Plate |
2H0-14146-00-00 |
1 |
|
| 23 |
Body, Float Chamber |
3U6-14981-06-00 |
1 |
|
| 24 |
Pin, Float |
537-14186-00-00 |
1 |
|
| 25 |
Needle, Valve Assembly |
3L1-14190-20-00 |
1 |
|
26 |
O-Ring |
8F2-14147-00-00 |
1 |
|
| 27 |
Net, Filter |
1J7-14994-00-00 |
1 |
|
| 28 |
Screw, Pan Head |
97801-05010-00 |
1 |
|
| 29 |
Screw, Cylinder Head |
98302-05006-00 |
1 |
|
| 30 |
Spring, Throttle Stop |
3F7-14133-00-00 |
1 |
|
31 |
Screw, Throttle |
3F7-14922-00-00 |
1 |
|
| 32 |
Plunger, Starter |
3Y6-14171-00-00 |
1 |
|
| 33 |
Cap, Plunger |
3Y6-14174-00-00 |
1 |
|
| 34 |
Cover, Plunger Cap |
132-14173-00-00 |
1 |
|
| 35 |
Holder |
304-14261-00-00 |
1 |
|
| 36 |
Pin |
432-14138-01-00 |
1 |
|
37 |
Spring, Plunger |
256-14135-00-00 |
1 |
|
| 38 |
Clip, Plunger |
353-14138-00-00 |
1 |
|
| 39 |
Screw, Pan Head |
98503-05015-00 |
4 |
|
| 40 |
Washer, Spring |
92903-05100-00 |
4 |
|
| 41 |
Bracket, Throttle |
3Y6-14926-00-00 |
1 |
|
