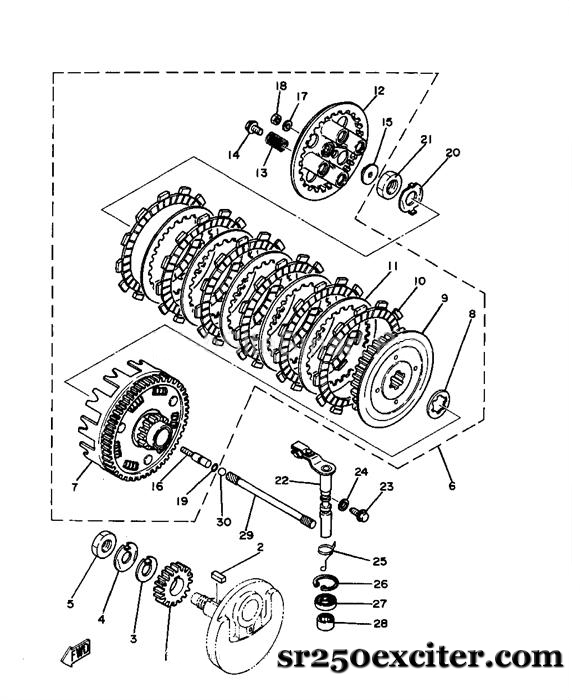

Clutch
| Clutch |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Clutch |
| 1 |
Gear, Primary Drive |
3Y6-16111-02-00 |
1 |
23 tooth |
| 2 |
Key, Straight |
90282-07041-00 |
1 |
|
| 3 |
Washer, Lock |
90215-16156-00 |
1 |
|
| 4 |
Washer, Lock |
90215-16157-00 |
1 |
|
| 5 |
Nut |
90170-16256-00 |
1 |
|
| 6 |
Clutch Assembly |
3Y6-16300-01-00 |
1 |
|
| 7 |
Primary Driven Gear |
3Y6-16150-01-00 |
1 |
72 / 17 tooth |
| 8 |
Plate, Thrust 1 |
3Y1-16154-00-00 |
1 |
|
| 9 |
Boss, Clutch |
3Y1-16371-00-00 |
1 |
|
| 10 |
Plate, Friction |
583-16321-00-00 |
6 |
|
| 11 |
Plate, Clutch 2 |
360-16325-00-00 |
5 |
|
| 12 |
Plate, Pressure 1 |
3Y1-16351-00-00 |
1 |
|
| 13 |
Spring, Compression |
90501-26148-00 |
4 |
|
| 14 |
Screw, with Washer |
90159-06016-00 |
4 |
|
| 15 |
Plate, Push |
1W1-16358-00-00 |
1 |
|
| 16 |
Rod, Push 1 |
3Y1-16356-01-00 |
1 |
|
| 17 |
Washer, Plain |
92903-06200-00 |
1 |
|
| 18 |
Nut |
95301-06600-00 |
1 |
|
| 19 |
O-Ring |
95301-06600-00 |
1 |
|
| 20 |
Washer, Lock |
90215-20159-00 |
1 |
|
| 21 |
Nut |
90170-20257-00 |
1 |
|
| 22 |
Push Lever Assembly |
3Y1-16380-01-00 |
1 |
|
| 23 |
Screw |
90149-08067-00 |
1 |
|
| 24 |
Gasket |
90430-08119-00 |
1 |
|
| 25 |
Spring, Torsion |
90508-14433-00 |
1 |
|
| 26 |
Circlip |
93420-28055-00 |
1 |
|
| 27 |
Oil Seal |
93102-14209-00 |
1 |
|
| 28 |
Bearing, Cylindrical |
93315-31428-00 |
1 |
|
| 29 |
Rod, Push 2 |
3Y6-16357-00-00 |
1 |
|
| 30 |
Ball |
93511-32017-00 |
1 |
|
