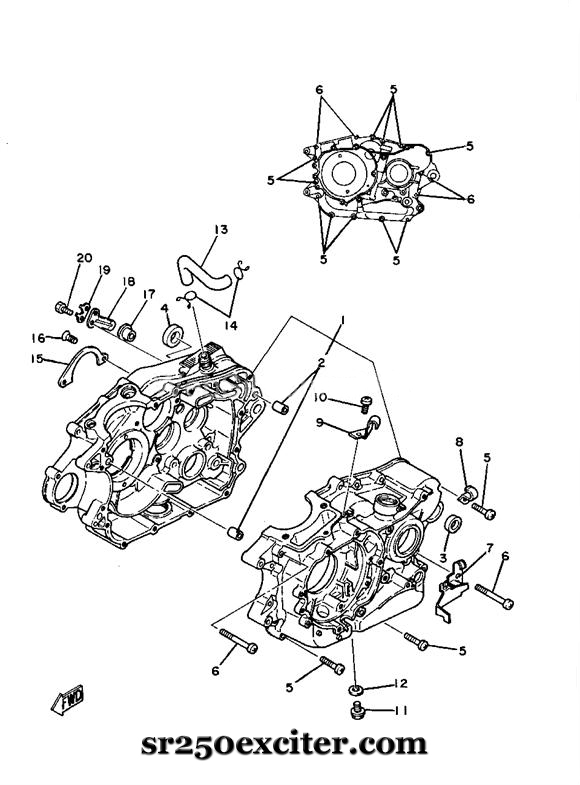

Crankcase
| Crankcase |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Crankcase |
| 1 |
Crankcase Assembly |
3Y6-15100-00-00 |
1 |
|
| 2 |
Pin, Dowel |
91830-22016-00 |
2 |
|
| 3 |
Collar |
90387-17783-00 |
1 |
|
| 4 |
Collar |
90387-16782-00 |
1 |
|
| 5 |
Screw, Pan Head |
92501-06030-00 |
11 |
|
| 6 |
Screw, Pan Head |
92501-06060-00 |
4 |
|
| 7 |
Clamp |
90465-08158-00 |
1 |
|
| 8 |
Clamp |
90465-08122-00 |
1 |
|
| 9 |
Holder, Clutch Cable |
3Y1-15441-01-00 |
1 |
|
| 10 |
Screw, Pan Head |
92503-06015-00 |
1 |
|
| 11 |
Plug, Straight Screw |
90340-10003-00 |
1 |
|
| 12 |
Washer, Plate |
90201-10118-00 |
1 |
|
| 13 |
Pipe, Breather 1 |
3Y6-11166-00-00 |
1 |
|
| 14 |
Clip |
90467-14015-00 |
2 |
|
| 15 |
Plate, Bearing Cover |
3Y1-15383-00-00 |
1 |
|
| 16 |
Screw, Flat Head |
92701-06015-00 |
2 |
|
| 17 |
Plug, Blind 1 |
3Y6-15167-00-00 |
1 |
|
| 18 |
Plate, Lock |
3Y6-15144-00-00 |
1 |
|
| 19 |
Washer, Lock |
214-15686-00-00 |
1 |
|
| 20 |
Bolt |
97321-06016-00 |
2 |
|
