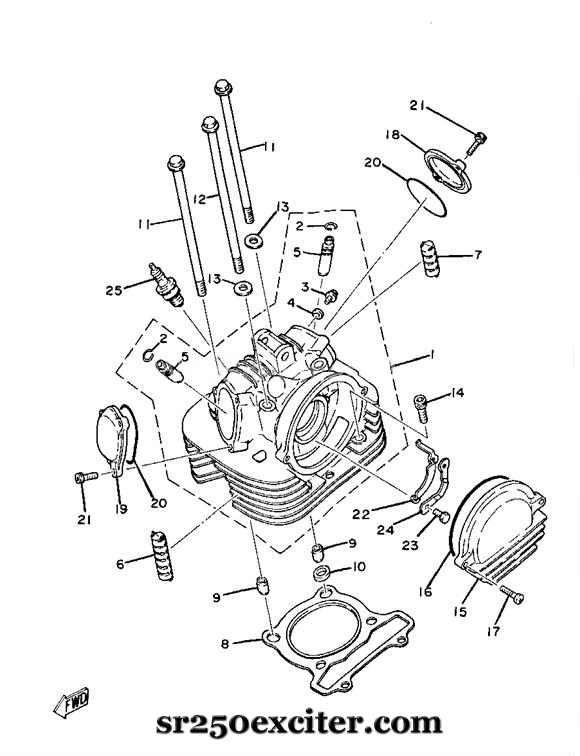

| 1 |
Cylinder Head Assembly |
3Y6-11110-00-00 |
1 |
|
| 2 |
Circlip |
93440-12052-00 |
2 |
|
| 3 |
Screw, Hexagon |
90153-06029-00 |
1 |
|
| 4 |
Gasket |
90430-06014-00 |
1 |
|
| 5 |
Guide, Intake Valve |
3Y1-11133-10-00 |
2 |
1st Oversize |
| 6 |
Absorber 3 |
3Y1-11127-00-00 |
3 |
|
| 7 |
Absorber 1 |
3Y1-11161-00-00 |
1 |
|
| 8 |
Gasket, Cylinder Head 1 |
3Y1-11181-01-00 |
1 |
|
| 9 |
Pin, Dowel |
91830-24016-00 |
2 |
|
| 10 |
Gasket |
90430-14131-00 |
1 |
|
| 11 |
Bolt, Washer Based |
90105-10140-00 |
2 |
|
| 12 |
Bolt, Washer Based |
90105-10139-00 |
2 |
|
| 13 |
Washer, Plate |
90201-10128-00 |
3 |
|
| 14 |
Bolt |
91316-08050-00 |
2 |
|
| 15 |
Cover, Cylinder Head Side 1 |
3Y6-11185-00-00 |
1 |
|
| 16 |
O-Ring |
93211-06485-00 |
1 |
|
| 17 |
Screw, Pan Head |
92501-06025-00 |
2 |
|
| 18 |
Cover, Cylinder Head Side 2 |
3Y1-11186-00-00 |
1 |
|
| 19 |
Cover, Cylinder Head Side 3 |
3Y6-11187-00-00 |
1 |
|
| 20 |
O-Ring |
93210-57412-00 |
2 |
|
| 21 |
Bolt |
91316-06020-00 |
5 |
|
| 22 |
Plate |
3Y1-1111F-00-00 |
1 |
|
| 23 |
Bolt |
97301-06012-00 |
2 |
|
| 24 |
Washer, Lock |
90215-06162-00 |
1 |
|
| 25 |
Spark Plug |
NGK-BP7ES-00-00 |
1 |
(94701-00117) U. R. |
| 25 |
Spark Plug |
94701-00141-00 |
1 |
(NDW22EP) U. R. |
