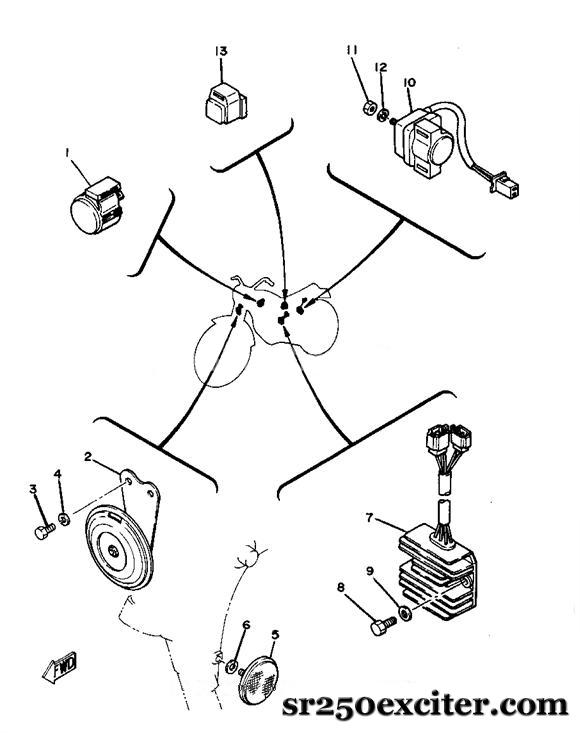

Electrical (2 of 2)
| Electrical 2 | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Electrical 2 | ||||
| 1 | Flasher Relay Assembly | 3Y6-83350-70-00 | 1 | |
| 2 | Horn | 3Y6-83371-00-00 | 1 | |
| 3 | Bolt | 97301-06010-00 | 2 | |
| 4 | Washer, Spring | 92903-06100-00 | 2 | |
| 5 | Reflector, Front 1 | 2N8-85111-00-00 | 2 | |
| 6 | Gasket | 90430-06012-00 | 2 | |
| 7 | Rectifier Regulator Assembly | 3Y6-81960-A0-00 | 1 | |
| 8 | Bolt | 97301-06016-00 | 2 | |
| 9 | Washer, Plate | 92901-06600-00 | 2 | |
| 10 | Starter Switch Assembly | 1J7-81940-10-00 | 1 | |
| 11 | Nut | 95301-06700-00 | 2 | |
| 12 | Washer, Spring | 92903-06100-00 | 2 | |
| 13 | Relay Assembly | 12R-81950-00-00 | 1 | |
