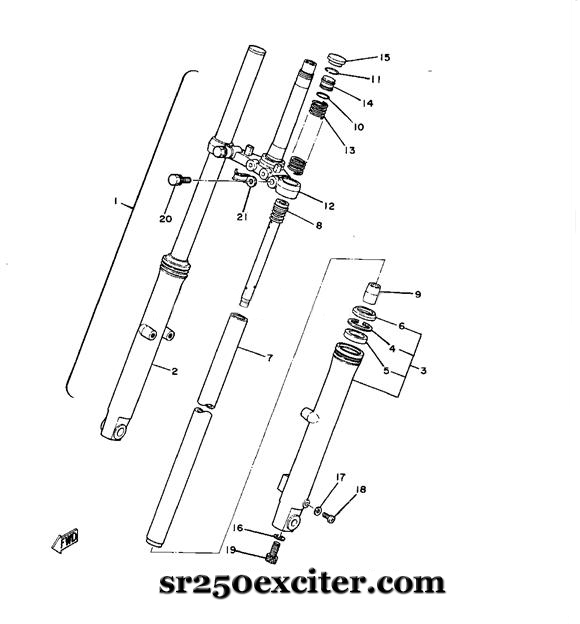

Front Fork
| Front Fork | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Front Fork | ||||
| 1 | Front Fork Assembly | 3Y6-23100-00-00 | 2 | |
| 2 | Tube, Outer 2 | 3Y6-23136-00-38 | 1 | Clear Buffing |
| 3 | Tube, Outer 1 | 3Y6-23126-00-38 | 1 | Clear Buffing |
| 4 | Ring, Snap | 2K5-23153-00-00 | 2 | |
| 5 | Oil Seal | 2K5-23145-00-00 | 2 | |
| 6 | Seal, Dust | 3Y6-23144-00-00 | 2 | |
| 7 | Inner Tube, Complete 1 | 3Y6-23110-00-00 | 2 | |
| 8 | Cylinder, Complete, Front Fork | 3Y6-23170-00-00 | 2 | |
| 9 | Spindle, Taper | 2K5-23173-00-00 | 2 | |
| 10 | Gasket | 3Y6-23114-00-00 | 2 | |
| 11 | Circlip | 3Y6-23183-00-00 | 2 | |
| 12 | Underbracket, Complete | 3Y6-23340-00-33 | 1 | Yamaha Black |
| 13 | Spring, Front Fork | 3Y6-23141-00-00 | 2 | |
| 14 | Bolt, Cap | 3Y6-23111-00-00 | 2 | |
| 15 | Cap, Front Fork | 3Y6-23168-00-00 | 2 | |
| 16 | Gasket | 509-23158-L0-00 | 2 | |
| 17 | Gasket, Drain Plug | 122-23129-00-00 | 2 | |
| 18 | Plug, Drain | 98501-04008-00 | 2 | |
| 19 | Bolt, Hexagon Socket Head | 278-23181-50-00 | 2 | |
| 20 | Bolt 1 | 1M3-23346-00-00 | 2 | |
| 21 | Holder, Cable 1 | 260-23318-40-00 | 1 | |
