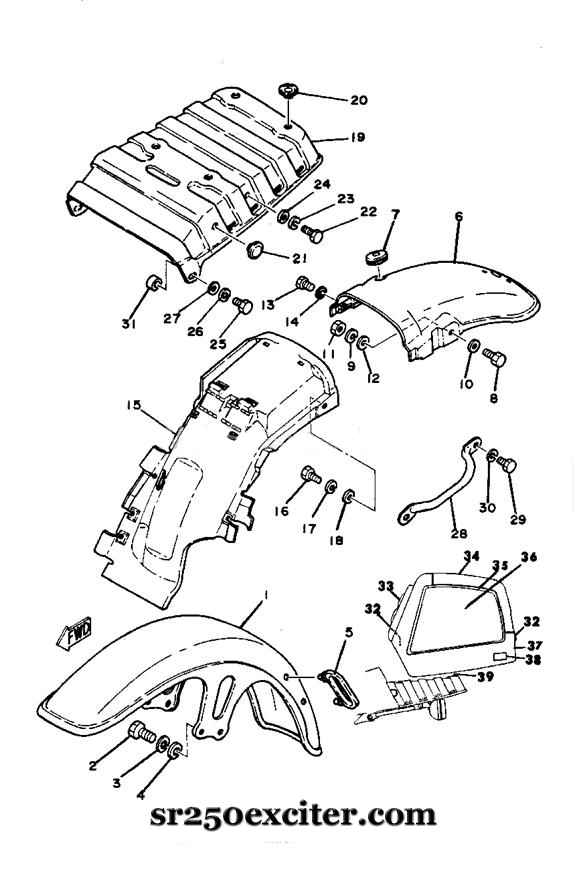

Front & Rear Fenders / Travel Trunk
| Front & Rear Fenders / Travel Trunk |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Front & Rear Fenders / Travel Trunk |
| 1 |
Fender, Front Chrome Plated |
3Y6-21511-00-93 |
1 |
|
| 2 |
Bolt |
97301-08020-00 |
4 |
|
| 3 |
Washer, Spring |
92903-08100-00 |
4 |
|
| 4 |
Washer |
92903-08200-00 |
4 |
|
| 5 |
Holder, Cable |
3Y6-21518-00-00 |
1 |
|
| 6 |
Rear Fender Comp Chrome Plated |
3Y6-21610-00-93 |
1 |
|
| 7 |
Grommet |
90480-15061-00 |
1 |
|
| 8 |
Bolt |
97301-08025-00 |
2 |
|
| 9 |
Washer, Spring |
92903-08100-00 |
2 |
|
| 10 |
Washer, Plate |
92901-08600-00 |
2 |
|
| 11 |
Nut |
95301-08600-00 |
2 |
|
| 12 |
Washer |
92903-08200-00 |
2 |
|
| 13 |
Bolt |
97301-06016-00 |
2 |
|
| 14 |
Washer, Spring |
92903-06100-00 |
2 |
|
| 15 |
Guard, Mud |
3Y6-21629-00-00 |
1 |
|
| 16 |
Bolt |
97301-06016-00 |
2 |
|
| 17 |
Washer, Spring |
92903-06100-00 |
2 |
|
| 18 |
Washer, Plate |
90201-06067-00 |
2 |
|
| 19 |
Cover, Rear Fender |
4K9-21651-00-00 |
1 |
|
| 20 |
Pad, Battery |
1L9-82126-01-00 |
4 |
|
| 21 |
Damper 1 |
4K9-21638-00-00 |
2 |
|
| 22 |
Bolt |
97301-08030-00 |
2 |
|
| 23 |
Washer, Spring |
92903-08100-00 |
2 |
|
| 24 |
Washer, Plate |
92901-08600-00 |
2 |
|
| 25 |
Bolt |
97301-08020-00 |
2 |
|
| 26 |
Washer, Spring |
92903-08100-00 |
2 |
|
| 27 |
Washer, Plate |
92901-08600-00 |
2 |
|
| 28 |
Handle, Standing |
4K9-21165-00-00 |
1 |
|
| 29 |
Bolt, Hexagon |
97313-06016-00 |
1 |
|
| 30 |
Washer, Spring |
92903-06100-00 |
1 |
|
| 31 |
Collar |
90387-09069-00 |
2 |
|
| 32 |
Lock Assemblies |
ACC-4K961-40-00 |
1 |
|
| 33 |
Backrest Assembly |
ACC-4K961-30-00 |
1 |
|
| 34 |
Lid Assembly |
ACC-4K961-10-00 |
1 |
|
| 35 |
Sealing Gasket Assembly |
ACC-4K961-05-00 |
1 |
|
| 36 |
Side Cover Assembly |
ACC-4K961-20-00 |
1 |
|
| 37 |
Yamaha Emblem |
ACC-4K961-90-00 |
1 |
|
| 38 |
Reflector |
3Y6-85130-00-00 |
1 |
|
| 39 |
Damper Sheet |
ACC-4K961-88-00 |
1 |
|
