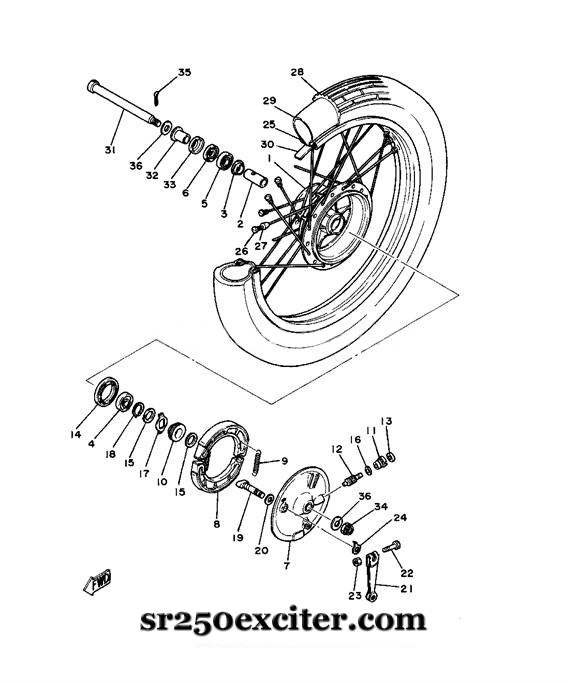

Front Wheel
| Front Wheel |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Front Wheel |
| 1 |
Hub, Front |
3Y6-25111-00-38 |
1 |
Clear Buffing |
| 2 |
Spacer, Bearing |
214-25117-00-00 |
1 |
|
| 3 |
Flange, Spacer |
183-25315-00-00 |
1 |
|
| 4 |
Bearing |
93306-20203-00 |
1 |
B6202RS |
| 5 |
Bearing |
93306-20205-00 |
1 |
B6202 |
| 6 |
Oil Seal |
93102-20009-00 |
1 |
|
| 7 |
Plate, Brake Shoe |
3Y6-25121-00-38 |
1 |
Clear Buffing |
| 8 |
Brake Shoe Complete |
431-25330-02-00 |
1 |
|
| 9 |
Spring, Tension |
90507-20002-00 |
2 |
|
| 10 |
Gear Drive |
246-25135-00-00 |
1 |
|
| 11 |
Bush |
109-25136-00-00 |
1 |
|
| 12 |
Gear, Meter |
214-25138-00-00 |
1 |
|
| 13 |
Oil Seal |
93104-07003-00 |
1 |
|
| 14 |
Oil Seal |
93104-07003-00 |
1 |
|
| 15 |
Washer, Plate |
90201-22283-00 |
2 |
|
| 16 |
Washer, Plate |
90201-07076-00 |
1 |
|
| 17 |
Clutch, Meter |
214-25149-01-00 |
1 |
|
| 18 |
Circlip |
93410-22014-00 |
1 |
|
| 19 |
Camshaft |
3Y6-25151-00-00 |
1 |
|
| 20 |
Shim, Camshaft |
148-25353-00-00 |
1 |
|
| 21 |
Lever, Camshaft 1 |
2N6-25155-00-00 |
1 |
|
| 22 |
Bolt |
90101-06278-00 |
1 |
|
| 23 |
Nut |
95301-06600-00 |
1 |
|
| 24 |
Plate, Indicator |
3Y6-2533A-01-00 |
1 |
|
| 25 |
Rim |
94416-18258-00 |
1 |
1.60-18 |
| 26 |
Spoke Set, Front |
3Y6-25104-00-00 |
1 |
|
| 27 |
Balancer, Wheel U.N. |
156-25398-00-00 |
1 |
|
| 28 |
Tire |
94130-18429-00 |
1 |
3.00-18 |
| 29 |
Tube |
94230-18084-00 |
1 |
3.00-18 |
| 30 |
Band, Rim |
94325-18064-00 |
1 |
2.50-18 |
| 31 |
Axle, Wheel |
1W1-25181-01-00 |
1 |
|
| 32 |
Collar |
90387-15600-00 |
1 |
|
| 33 |
Cover, Hub Dust |
322-25118-00-00 |
1 |
|
| 34 |
Nut, Castle |
90171-14020-00 |
1 |
|
| 35 |
Pin, Cotter |
91401-30030-00 |
1 |
|
| 36 |
Washer, Plate |
90201-15785-00 |
2 |
|
