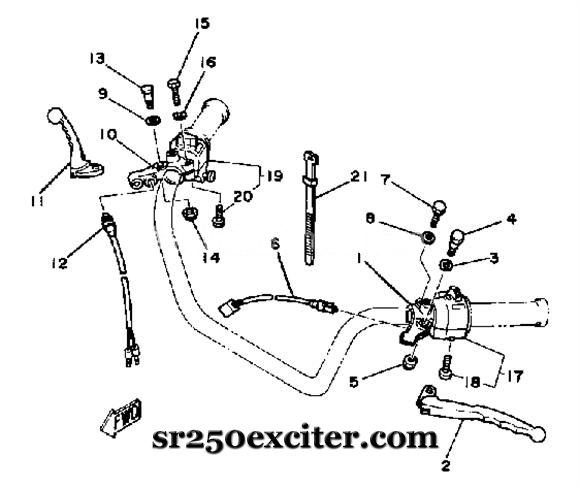

Handlebar - Switches - Levers
| Handlebar - Switches - Levers |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Handlebar - Switches - Levers |
| 1 |
Holder, Lever 1 |
3Y6-82911-00-00 |
1 |
|
| 2 |
Lever 1 |
23X-83912-00-00 |
1 |
|
| 3 |
Washer, Plate |
90201-08083-00 |
1 |
|
| 4 |
Bolt |
90109-06797-00 |
1 |
|
| 5 |
Nut |
95601-06100-00 |
1 |
|
| 6 |
Switch |
3Y6-82917-00-00 |
1 |
|
| 7 |
Bolt, Hexagon |
97003-06022-00 |
1 |
|
| 8 |
Washer, Spring |
92995-06100-00 |
1 |
|
| 9 |
Washer, Plate |
90201-08083-00 |
1 |
|
| 10 |
Holder, Lever 2 |
361-82920-93-00 |
1 |
|
| 11 |
Lever 2 |
23X-83922-00-00 |
1 |
|
| 12 |
Stop Switch Assembly |
395-83980-00-00 |
1 |
|
| 13 |
Bolt |
90109-06797-00 |
1 |
|
| 14 |
Nut |
95601-06100-00 |
1 |
|
| 15 |
Bolt, Hexagon |
97003-06022-00 |
1 |
|
| 16 |
Washer, Spring |
92995-06100-00 |
1 |
|
| 17 |
Switch, Handle 3 |
3Y6-83973-00-00 |
1 |
|
| 18 |
Screw, Pan Head |
98580-05020-00 |
2 |
|
| 19 |
Switch, Handle 2 |
3Y6-83975-00-00 |
1 |
|
| 20 |
Screw, Pan Head |
98580-05020-00 |
2 |
|
| 21 |
Band, Switch Cord |
437-83936-01-00 |
4 |
|
