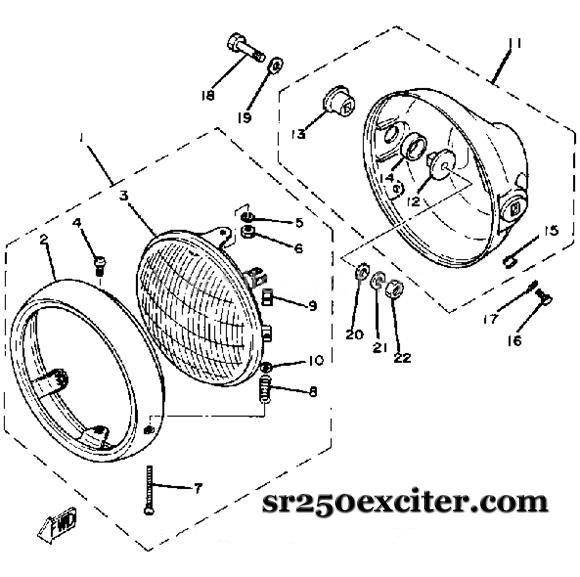

Headlight
| Headlight |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Headlight |
| 1 |
Headlight Assembly |
3Y6-84310-60-00 |
1 |
|
| 2 |
Rim, Headlight |
1L9-84315-60-00 |
1 |
|
| 3 |
Lens Assembly |
3Y6-84320-60-00 |
1 |
|
| 4 |
Screw, Panhead |
98580-06010-00 |
2 |
|
| 5 |
Washer, Spring |
92995-06100-00 |
2 |
|
| 6 |
Nut, Hexagon |
95380-06600-00 |
2 |
|
| 7 |
Screw, Rim Adjuster |
1NN-84131-10-00 |
1 |
|
| 8 |
Spring |
21V-84335-00-00 |
1 |
|
| 9 |
Nut, Adjusting |
1L9-84334-60-00 |
1 |
|
| 10 |
Washer, Plate |
92901-04600-00 |
1 |
|
| 11 |
Body Assemlbly |
3Y6-84330-00-00 |
1 |
|
| 12 |
Collar, Body Fitting |
1L9-84338-60-00 |
2 |
|
| 13 |
Damper, Headlight 1 |
1L9-84366-61-00 |
2 |
|
| 14 |
Damper, Headlight 2 |
1L9-84367-61-00 |
2 |
|
| 15 |
Washer, Special |
1L9-84327-60-00 |
2 |
|
| 16 |
Screw, Panhead |
98580-05016-00 |
2 |
|
| 17 |
Washer, Spring |
92990-05100-00 |
2 |
|
| 18 |
Bolt, Hexagon |
97303-08035-00 |
2 |
|
| 19 |
Washer, Plain |
92990-08200-00 |
2 |
|
| 20 |
Washer, Plain |
92990-08200-00 |
2 |
|
| 21 |
Washer, Spring |
92990-08100-00 |
2 |
|
| 22 |
Nut |
95333-08600-00 |
2 |
|
