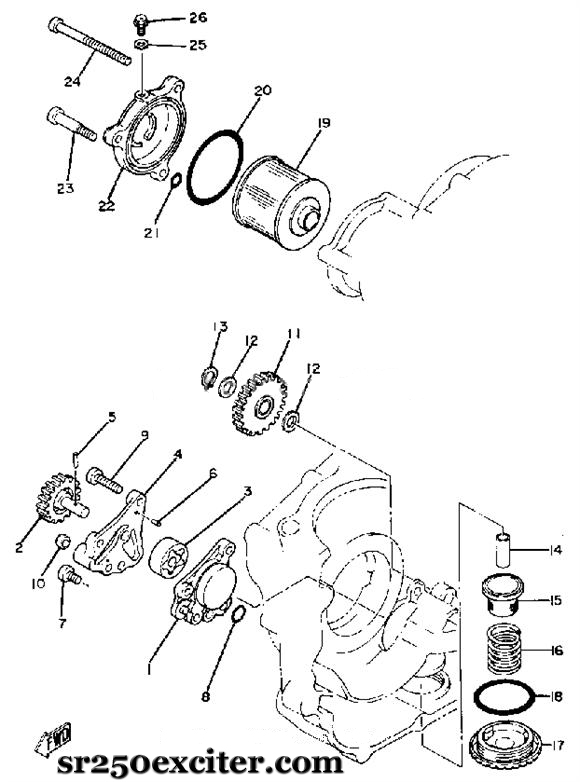

Oil Pump
| Oil Pump | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Oil Pump | ||||
| 1 | Housing, Rotor | 3Y1-13336-00-00 | 1 | |
| Housing, Rotor 674 | 3Y1-13336-01-00 | 1 | ||
| 2 | Gear, Pump Driven | 3Y6-13326-00-00 | 1 | |
| Gear, Pump Driven 674 | 3Y6-13326-01-00 | 1 | 23T | |
| 3 | Oil Pump Assembly | 3Y6-13300-01-00 | 1 | |
| Rotor Assembly 674 | 3Y1-13310-01-00 | 1 | ||
| 4 | Cover, Pump | 3Y1-13316-00-00 | 1 | |
| 5 | Pin, Dowel | 93603-12030-00 | 1 | |
| 6 | Pin, Dowel | 93603-07073-00 | 2 | |
| 7 | Screw, Pan Head | 98503-06014-00 | 1 | |
| 8 | O-Ring | 93210-10096-00 | 1 | |
| 9 | Screw, Pan Head | 98511-06025-00 | 3 | |
| 10 | Gasket | 90430-06156-00 | 1 | |
| 11 | Gear, Oil Pump Idle | 3Y1-13341-00-00 | 1 | |
| 12 | Washer, Plate | 90201-10119-00 | 2 | |
| 13 | Circlip | 99009-10400-00 | 1 | |
| 14 | Pipe, Oil | 2XK-13416-00-00 | 1 | |
| 15 | Strainer, Oil | 51Y-13411-00-00 | 1 | |
| 16 | Spring, Compression | 90501-18576-00 | 1 | |
| 17 | Plug, Drain | 3Y1-15351-01-00 | 1 | |
| 18 | O-Ring | 93210-40745-00 | 1 | |
| 19 | Element Assembly, Oil Cleaner | 4X7-13440-90-00 | 1 | |
| 20 | O-Ring | 93210-64297-00 | 1 | |
| 21 | O-Ring | 93210-07438-00 | 1 | |
| 22 | Cover, Oil Element | 2J2-13447-00-00 | 1 | |
| 23 | Bolt | 90109-06419-00 | 1 | |
| 24 | Screw, Pan Head | 98501-06090-00 | 2 | |
| 25 | Gasket | 90430-05126-00 | 1 | |
| 26 | Screw | 90149-05110-00 | 1 | |
