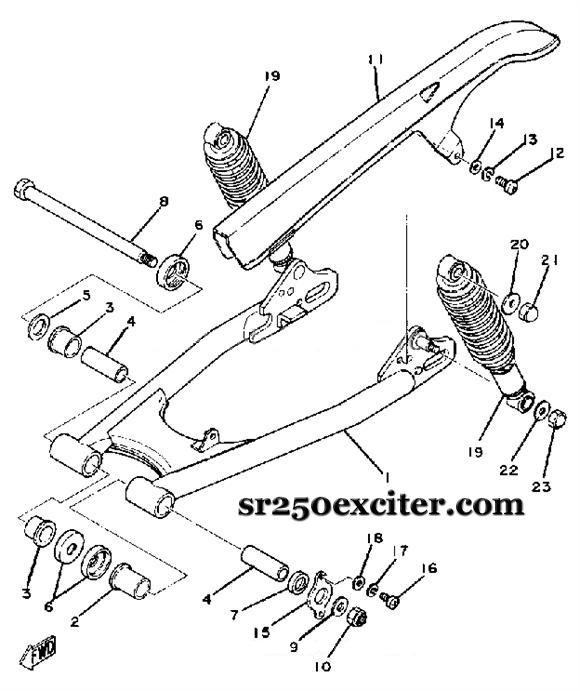

Rear Trailing Arm and Shocks
| Rear Arm |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Rear Arm |
| 1 |
Rear Arm |
3Y6-22110-01-33 |
1 |
|
| 2 |
Bush |
3Y1-22184-01-00 |
1 |
|
| 3 |
Bush 1 |
3Y1-22123-01-00 |
2 |
|
| 4 |
Bush 2 |
3Y1-22124-01-00 |
2 |
|
| 5 |
Shim |
240-22127-00-00 |
1 |
|
| 6 |
Cover, Thrust |
322-22128-01-00 |
3 |
|
| 7 |
Oil Seal |
93109-22019-00 |
1 |
|
| 8 |
Shaft, Pivot |
2N6-22141-00-00 |
1 |
|
| 9 |
Washer, Plate |
90201-14218-00 |
1 |
|
| 10 |
Nut, Self Locking |
90185-14070-00 |
1 |
|
| 11 |
Chain Case Assembly |
3Y6-22310-01-00 |
1 |
|
| 12 |
Screw, Pan Head |
98503-06014-00 |
2 |
|
| 13 |
Washer, Spring |
92995-06100-00 |
2 |
|
| 14 |
Washer, Plate |
90201-062A8-00 |
2 |
|
| 15 |
Plate |
3Y1-21329-00-00 |
1 |
|
| 16 |
Screw, Pan Head |
98580-06012-00 |
1 |
|
| 17 |
Washer, Spring |
92995-06100-00 |
1 |
|
| 18 |
Washer |
92901-06600-00 |
1 |
|
| 19 |
Shock Absorber, Rear |
3Y6-22210-00-00 |
2 |
|
| 20 |
Washer, Plate |
90201-10142-00 |
2 |
|
| 21 |
Nut, Cap |
90176-10009-00 |
2 |
|
| 22 |
Washer, Plate |
90201-10437-00 |
2 |
|
| 23 |
Nut, Crown |
90176-10013-00 |
2 |
|
