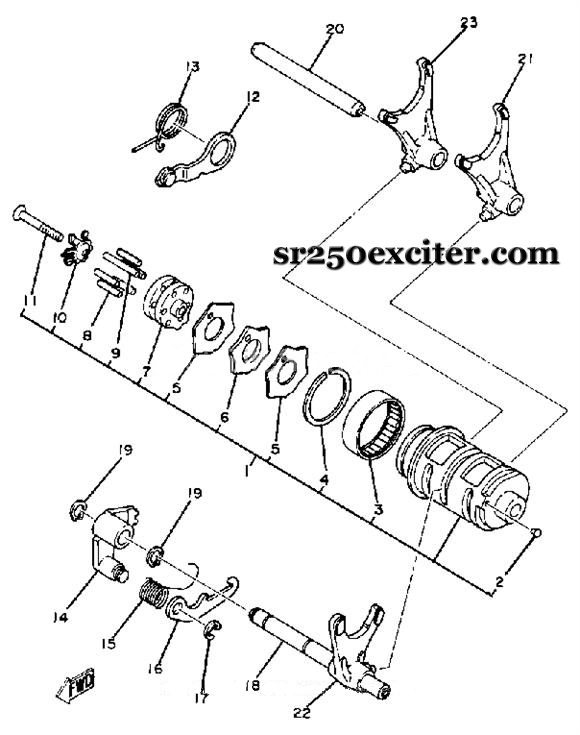

Shift Cam & Fork
| Shift Cam & Fork |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Shift Cam & Fork |
| 1 |
Shift Cam Assembly |
3Y1-18540-00-00 |
1 |
|
| 2 |
Point, Neutral |
136-18542-00-00 |
1 |
|
| 3 |
Bearing |
93315-23612-00 |
1 |
|
| 4 |
Circlip |
93440-34025-00 |
1 |
|
| 5 |
Guide, Plate Stopper |
3Y1-18161-00-00 |
2 |
|
| 6 |
Plate, Stopper |
3Y1-18141-00-00 |
1 |
|
| 7 |
Segment |
3Y1-18185-01-00 |
1 |
|
| 8 |
Pin, Dowel |
93604-18100-00 |
5 |
|
| 9 |
Pin, Dowel |
93604-29151-00 |
1 |
|
| 10 |
Plate, Side 1 |
2K9-18561-00-00 |
1 |
|
| 11 |
Screw, Flat Head |
98701-05035-00 |
1 |
|
| 12 |
Stopper Lever Assembly |
3Y1-18140-00-00 |
1 |
|
| 13 |
Spring, Torsion |
90508-26434-00 |
1 |
|
| 14 |
Lever, Shift 2 |
3Y1-18122-00-00 |
1 |
|
| 15 |
Spring, Torsion |
90508-12430-00 |
1 |
|
| 16 |
Lever, Shift 3 |
2K7-18151-00-00 |
1 |
|
| 17 |
#ITEM# |
99080-07600-00 |
1 |
|
| 18 |
#ITEM# |
3Y1-18531-00-00 |
1 |
|
| 19 |
#ITEM# |
99009-10400-00 |
2 |
|
| 20 |
#ITEM# |
3Y1-18535-00-00 |
1 |
|
| 21 |
Fork, Shift 1 |
3Y1-18511-00-00 |
1 |
|
| 22 |
Fork, Shift 2 |
3Y1-18512-00-00 |
1 |
|
| 23 |
Fork, Shift 3 |
3Y1-18513-00-00 |
1 |
|
