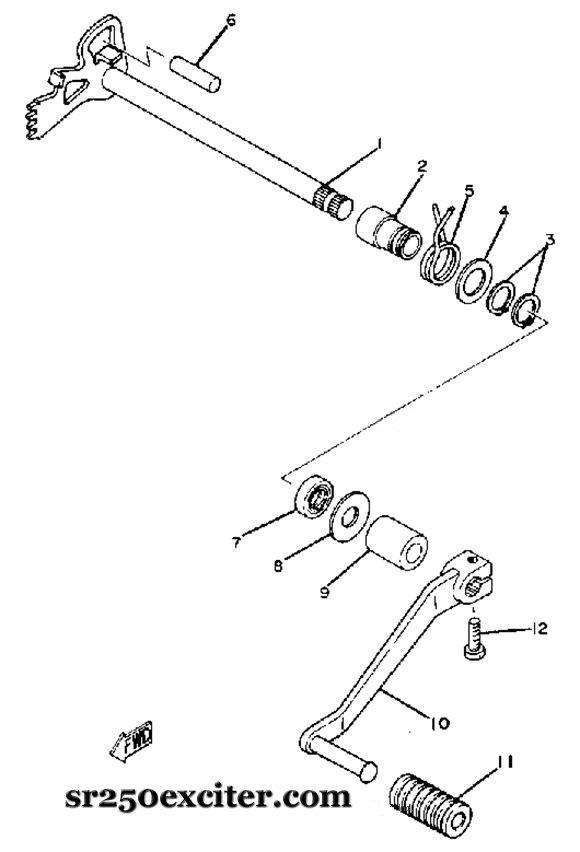

Shifter Shaft & Pedal
| Shifter Shaft & Pedal | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Shifter Shaft & Pedal | ||||
| 1 | Shift Shaft Assembly | 3Y1-18101-00-00 | 1 | |
| 2 | Collar | 90387-12787-00 | 1 | |
| 3 | Circlip | 99009-17400-00 | 2 | |
| 4 | Washer, Plate | 90201-17255-00 | 1 | |
| 5 | Spring, Torsion | 90508-32374-00 | 1 | |
| 6 | Pin, Dowel | 93608-30152-00 | 1 | |
| 7 | Oil Seal | 93102-12321-00 | 1 | SD 12-22-5 HS |
| 8 | Washer, Plate | 90201-12588-00 | 1 | |
| 9 | Spacer | 90560-12191-00 | 1 | |
| 10 | Pedal, Shift | 3Y6-18111-00-00 | 1 | |
| 11 | Cover, Shift Pedal | 132-18113-01-00 | 1 | |
| 12 | Bolt | 97011-06020-00 | 1 | |
