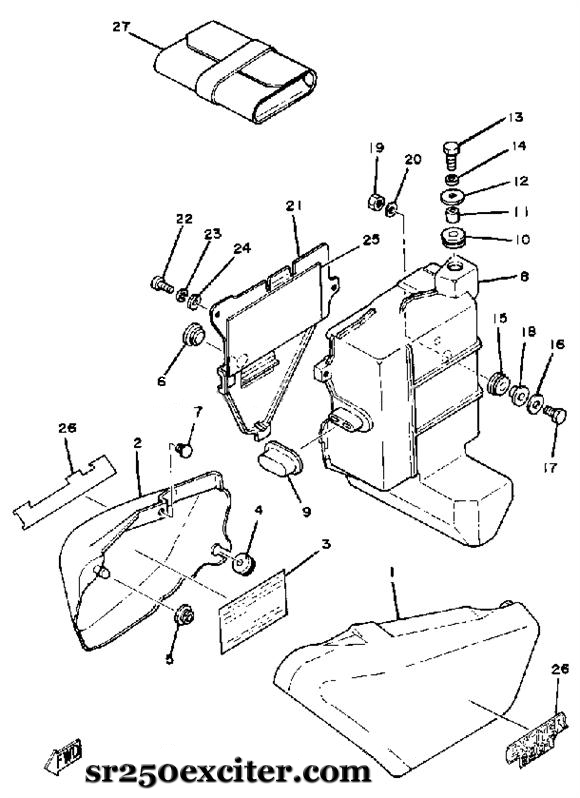

Side Cover
| Side Cover |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Side Cover |
| 1 |
Cover, Side 1 |
3Y6-21711-00-63 |
1 |
Cardinal Red |
| 2 |
Cover, Side 2 |
3Y6-21721-00-63 |
1 |
Cardinal Red |
| 3 |
Plate, Spec |
3Y6-21683-00-00 |
1 |
|
| 4 |
Grommet |
90480-12053-00 |
1 |
|
| 5 |
Grommet |
90480-01401-00 |
1 |
|
| 6 |
Pad, Battery |
371-82121-00-00 |
1 |
|
| 7 |
Damper |
1J7-21717-00-00 |
1 |
|
| 8 |
Box |
3Y6-21170-00-00 |
1 |
|
| 9 |
Damper |
3Y6-21746-00-00 |
1 |
|
| 10 |
Grommet |
90480-16233-00 |
1 |
|
| 11 |
Collar |
90387-064W1-00 |
1 |
|
| 12 |
Washer, Plate |
90201-063J2-00 |
1 |
|
| 13 |
Bolt |
97023-06020-00 |
1 |
|
| 14 |
Washer, Spring |
92995-06100-00 |
1 |
|
| 15 |
Grommet |
90480-13398-00 |
1 |
|
| 16 |
Washer, Plate |
90201-06067-00 |
1 |
|
| 17 |
Bolt |
97023-06020-00 |
1 |
|
| 18 |
Collar |
90387-06737-00 |
1 |
|
| 19 |
Nut, Hexagon |
95380-06600-00 |
1 |
|
| 20 |
Washer, Plate |
90201-062A8-00 |
1 |
|
| 21 |
Lid |
3Y6-28185-00-00 |
1 |
|
| 22 |
Screw, Pan Head |
98503-06014-00 |
2 |
|
| 23 |
Washer, Spring |
92995-06100-00 |
2 |
|
| 24 |
Washer, Plate |
90201-062G3-00 |
2 |
|
| 25 |
Damper |
12R-21747-00-00 |
2 |
|
| 26 |
Emblem |
4K9-21781-00-00 |
2 |
|
| 27 |
Tool Kit |
5A8-W2810-00-00 |
1 |
|
