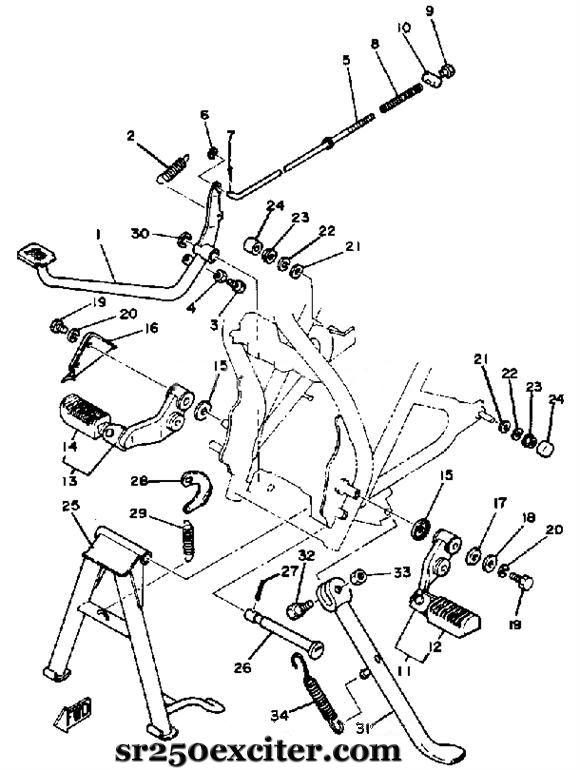

Stand & Footrest
| Stand & Footrest | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Stand & Footrest | ||||
| 1 | Pedal, Brake | 3Y6-27211-00-93 | 1 | |
| 2 | Spring, Tension | 90506-23045-00 | 1 | |
| 3 | Screw, Hexagon | 90153-06008-00 | 1 | |
| 4 | Nut | 95302-06600-00 | 1 | |
| 5 | Rod, Brake | 3Y6-27231-00-00 | 1 | |
| 6 | Washer, Plain | 92990-06200-00 | 1 | |
| 7 | Pin, Cotter | 91490-20020-00 | 1 | |
| 8 | Spring, Compression | 90501-10245-00 | 1 | |
| 9 | Nut | 90179-06411-00 | 1 | |
| 10 | Pin | 90249-12008-00 | 1 | |
| 11 | Front Footrest Assembly Left | 3Y6-27410-00-R4 | 1 | |
| 12 | Cover, Footrest | 4L0-27423-00-00 | 1 | |
| 13 | Front Footrest Assembly Right | 3Y6-27420-00-R4 | 1 | |
| 14 | Cover, Footrest | 4L0-27423-00-00 | 1 | |
| 15 | Washer, Special Shape | 90209-12157-00 | 4 | |
| 16 | Protector | 3Y6-27491-00-00 | 1 | |
| 17 | Washer, Special Shape | 90209-08150-00 | 1 | |
| 18 | Washer, Plate | 90201-08612-00 | 2 | |
| 19 | Bolt, Hexagon | 97313-08016-00 | 4 | |
| 20 | Washer, Spring | 92990-08100-00 | 4 | |
| 21 | Washer, Plate | 90201-10131-00 | 2 | |
| 22 | Washer, Spring | 92990-10100-00 | 2 | |
| 23 | Nut, Flange | 95701-10500-00 | 2 | |
| 24 | Cap, Tool Box | 262-21399-00-00 | 2 | |
| 25 | Stand, Main | 3Y6-27111-01-R4 | 1 | |
| 26 | Shaft, Main Stand | 3Y6-27112-00-00 | 1 | |
| 27 | Pin, Cotter | 91401-30030-00 | 1 | |
| 28 | Link, Main Stand | 3Y6-27115-00-00 | 1 | |
| 29 | Spring, Tension | 90506-32056-00 | 1 | |
| 30 | Washer, Plate | 90201-15340-00 | 1 | |
| 31 | Stand, Side | 3Y6-27311-00-33 | 1 | |
| 32 | Bolt | 90109-08032-00 | 1 | |
| 33 | Nut, Self Locking | 90185-08055-00 | 1 | |
| 34 | Spring, Tension | 90507-29009-00 | 1 | |
