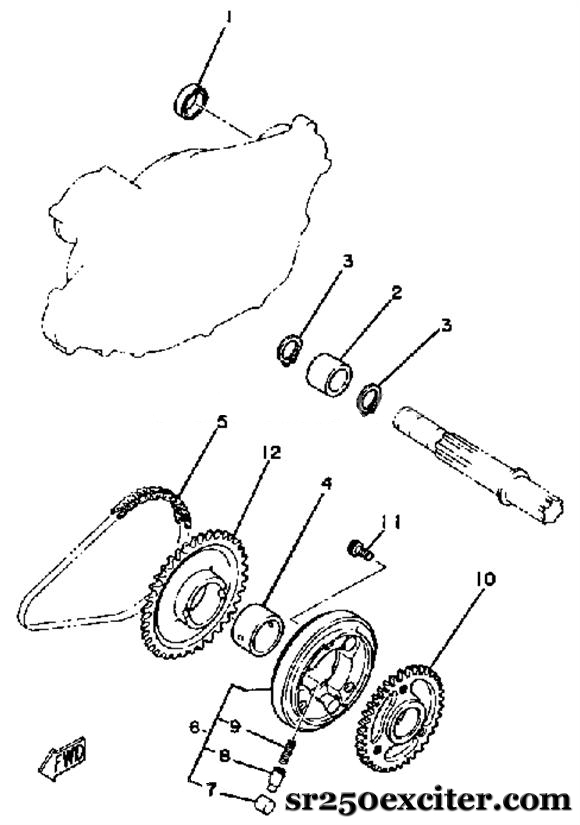

Starter Clutch
| Starter Clutch | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Starter Clutch | ||||
| 1 | Plug | 90338-30096-00 | 1 | |
| 2 | Spacer | 90560-20199-00 | 1 | |
| 3 | Circlip | 99009-20400-00 | 2 | |
| 4 | Collar | 90387-252A2-00 | 1 | |
| 5 | Chain | 94552-19060-00 | 1 | 3Y6 |
| 6 | Starter Clutch OTR Assembly | 3Y6-15580-00-00 | 1 | |
| 7 | Pin, Dowel | 93615-15114-00 | 3 | |
| 8 | Cap, Starter Clutch Spring | 1J7-15583-01-00 | 3 | |
| 9 | Spring, Compression | 90501-04596-00 | 3 | |
| 10 | Gear, Drive | 3Y6-11536-00-00 | 1 | |
| 11 | Bolt, Socket Head | 91316-08016-00 | 3 | |
| 12 | Sprocket, Starter 2 | 3Y6-15519-00-00 | 1 | |
