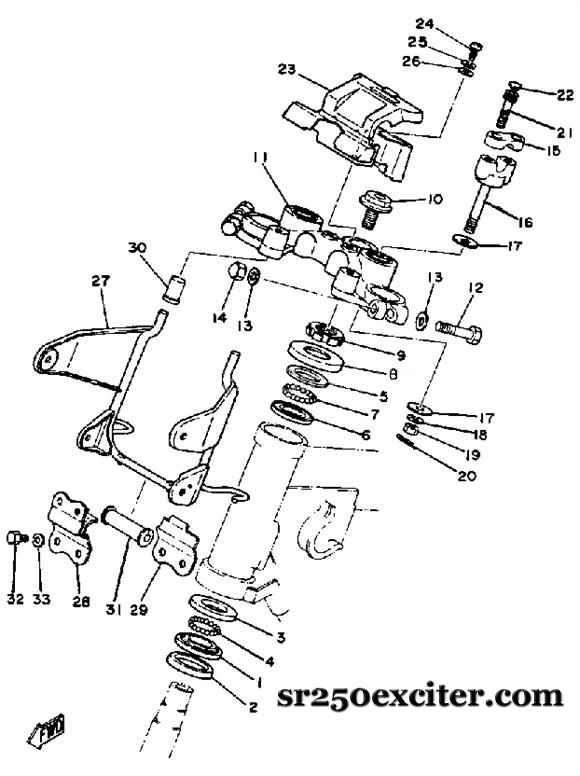

Steering
| Steering | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Steering | ||||
| 1 | Race, Ball 1 | 156-23411-00-00 | 1 | |
| 2 | Seal, Dust | 164-23462-00-00 | 1 | |
| 3 | Race, Ball 2 | 156-23412-00-00 | 1 | |
| 4 | Ball | 93501-04011-00 | 19 | |
| 5 | Race, Ball 1 | 183-23411-00-00 | 1 | |
| 6 | Race, Ball 2 | 183-23412-00-00 | 1 | |
| 7 | Ball | 93501-04011-00 | 19 | |
| 8 | Cover, Ball Race 1 | 136-23415-00-00 | 1 | |
| 9 | Nut | 90179-25033-00 | 1 | |
| 10 | Bolt, Flange | 90105-14102-00 | 1 | |
| 11 | Crown, Handle | 3Y6-W2341-00-98 | 1 | |
| 12 | Bolt, Hexagon | 97313-08055-00 | 2 | |
| 13 | Washer | 92901-08600-00 | 4 | |
| 14 | Nut, Crown | 95303-08800-00 | 2 | |
| 15 | Holder, Handle Upper | 4H7-23441-00-98 | 2 | |
| 16 | Holder, Handle Lower | 3Y6-23442-00-98 | 2 | |
| 17 | Washer, Plate | 90201-100A1-00 | 4 | |
| 18 | Washer, Spring | 92990-10100-00 | 2 | |
| 19 | Nut | 95303-10700-00 | 2 | |
| 20 | Clip | 90468-12006-00 | 2 | |
| 21 | Bolt, Socket Head | 91316-08030-00 | 4 | |
| 22 | Cap, Bolt | 341-23469-00-00 | 4 | |
| 23 | Handle Cover Assembly | 3Y6-26203-00-00 | 1 | |
| 24 | Screw, Pan Head | 98580-05012-00 | 1 | |
| 25 | Washer, Spring | 92990-05100-00 | 1 | |
| 26 | Washer, Plate | 92901-05600-00 | 1 | |
| 27 | Stay, Headlight | 3Y8-23174-00-00 | 1 | |
| 28 | Bracket, Headlight Stay 1 | 3Y6-23175-00-00 | 1 | |
| 29 | Bracket, Headlight Stay 2 | 3Y6-23176-00-00 | 1 | |
| 30 | Damper, 1 | 3Y6-2317J-00-00 | 2 | |
| 31 | Damper, 2 | 3Y6-2317K-00-00 | 1 | |
| 32 | Bolt, Hexagon | 97313-06016-00 | 2 | |
| 33 | Washer, Spring | 92995-06100-00 | 2 | |
