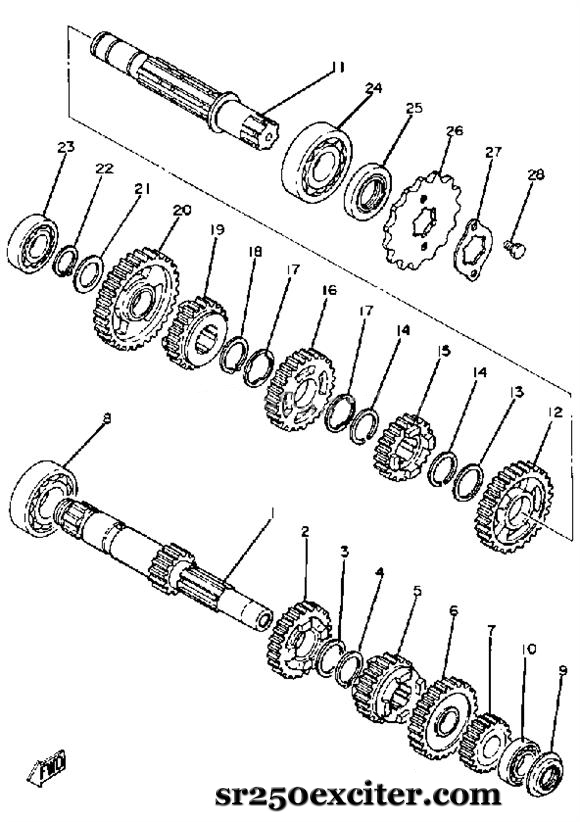

Transmission
| Transmission |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Transmission |
| 1 |
Axle, Main |
3Y6-17411-00-00 |
1 |
|
| 2 |
Gear, 4th Pinion |
3Y1-17141-00-00 |
1 |
26T |
| 3 |
Washer, Plate |
90201-22793-00 |
1 |
|
| 4 |
Circlip |
93410-22039-00 |
1 |
|
| 5 |
Gear, 3rd Pinion |
3Y1-17131-00-00 |
1 |
|
| 6 |
Gear, 5th Pinion |
3Y1-17151-00-00 |
1 |
28T |
| 7 |
Gear, 2nd Pinion |
3Y1-17121-01-00 |
1 |
19T |
| 8 |
Bearing |
93306-20541-00 |
1 |
B6205 |
| 9 |
Oil Seal |
93101-17093-00 |
1 |
|
| 10 |
Bearing |
93306-00302-00 |
1 |
B6003C3 |
| 11 |
Drive Axle Assembly |
3Y1-17402-00-00 |
1 |
|
| 12 |
Gear, 2nd Wheel |
3Y1-17221-01-00 |
1 |
32T |
| 13 |
Washer, Plate |
90201-253K0-00 |
1 |
T=1.0 |
| 14 |
Circlip |
93440-25084-00 |
2 |
|
| 15 |
Gear, 5th Wheel |
3Y1-17251-00-00 |
1 |
|
| 16 |
Gear, 3rd Wheel |
3Y1-17231-01-00 |
1 |
29T |
| 17 |
Washer |
90209-22191-00 |
2 |
|
| 18 |
Circlip |
93410-25010-00 |
1 |
|
| 19 |
Gear, 4th Wheel |
3Y1-17241-00-00 |
1 |
26T |
| 20 |
Gear, 1st Wheel |
3Y1-17211-00-00 |
1 |
37T |
| 21 |
Washer, Plate |
90201-20276-00 |
1 |
T=1.0 |
| 22 |
Circlip |
99009-20400-00 |
1 |
|
| 23 |
Bearing |
93306-00426-00 |
1 |
|
| 24 |
Bearing |
93306-30525-00 |
1 |
|
| 25 |
Oil Seal |
93102-25208-00 |
1 |
|
| 26 |
Sprocket, Drive |
93834-16100-00 |
1 |
16T |
| 27 |
Holder, Sprocket |
3Y1-17456-00-00 |
1 |
|
| 28 |
Bolt |
97011-06010-00 |
2 |
|
